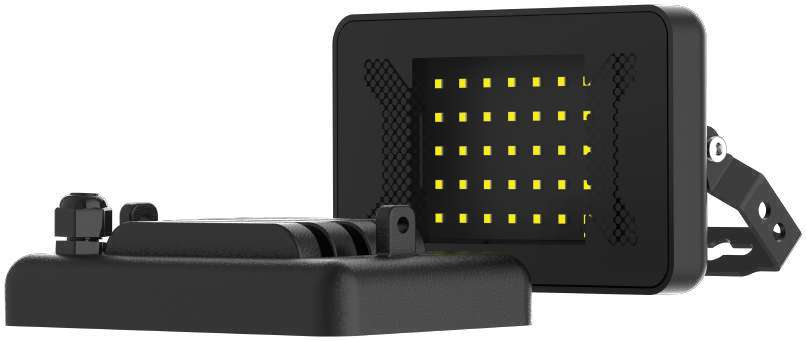

Mini
Mini is an LED floodlight family developed for powerful, efficient illumination in large-area applications.
Models6
Max. Power50 W
Max. Luminous Flux7,500 Lm
Dimensions150 × 90 × 35 mm
CATALOGUE FEATURES
Technical profile of the product family.
IP66IK09CRI 80100,000 h5-year warrantyCERoHSAC-DirectSuperCooler
ALL VARIANTS
Mini
Technical values for all products are available in the product catalogue.
| Model | Product No | Voltage | Power | Luminous Flux | CCT / Kelvin | PF | Beam Angle | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Mini-20 | 23M001007 | 230VAC | 20W | 3000Lm | 2000~6500K | >0,95 | 120° | 0,50 |
| Mini-30 | 23M001008 | 230VAC | 30W | 4500Lm | 2000~6500K | >0,95 | 120° | 0,50 |
| Mini-40 | 23M001009 | 230VAC | 40W | 6000Lm | 2000~6500K | >0,95 | 120° | 0,50 |
| Mini-50 | 23M001010 | 230VAC | 50W | 7500Lm | 2000~6500K | >0,95 | 120° | 0,50 |
| Mini-2512 | 23M001306 | 12VDC | 25W | 3750Lm | 2000~6500K | >0,95 | 120° | 0,50 |
| Mini-2524 | 23M001307 | 24VDC | 25W | 3750Lm | 2000~6500K | >0,95 | 120° | 0,50 |
