MC

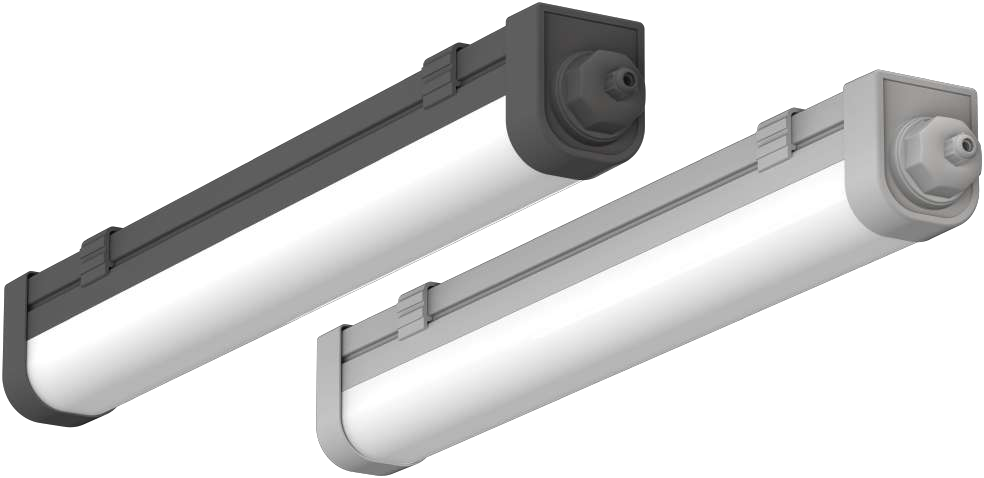

MC is a weatherproof luminaire family for industrial and technical spaces. Compare power, length and protection rating for your application, and consult the model’s datasheet for mounting and supply details.
Models8
Max. Power80 W
Max. Luminous Flux12,000 Lm
Dimensions600/1200 × 73 × 85 mm
CATALOGUE FEATURES
Technical profile of the product family.
IP65IK09CRI 80100,000 h5-year warrantyCERoHSAC Direct™
ENGLISH DATASHEETS
Technical documents for this product.
01
MC-300 12 W Datasheet27MDS000151 · PDF · English
↗02MC-600 20 W Datasheet27MDS000153 · PDF · English
↗03MC-600 30 W Datasheet27MDS000155 · PDF · English
↗04MC-600 30 W 12/24 V DC Datasheet27MDS000157 · PDF · English
↗05MC-1200 40 W Datasheet27MDS000159 · PDF · English
↗06MC-1200 80 W Datasheet27MDS000161 · PDF · English
↗07MC-1200 40 W 12/24 V DC Datasheet27MDS000163 · PDF · English
↗ALL VARIANTS
MC
Technical values for all products are available in the product catalogue.
| Model | Product No | Voltage | Power | Luminous Flux | Beam Angle | Weight (kg) | IP Rating |
|---|---|---|---|---|---|---|---|
| MC-300A-12 | 27M001373 | 240VAC | 12W | 1800Lm | 180° | 0,5 | IP65 |
| MC-300A-12AN | 27M001982 | 240VAC | 12W | 1800Lm | 180° | 0,5 | IP65 |
| MC-600A-20 | 27M001374 | 240VAC | 20W | 3000Lm | 180° | 0,9 | IP65 |
| MC-600A-30 | 27M001375 | 240VAC | 30W | 4500Lm | 180° | 0,9 | IP65 |
| MC-600DC-30-12/24 | 27M001383 | 12/24VDC | 30W | 4500Lm | 180° | 0,9 | IP65 |
| MC-1200A-40 | 27M001376 | 240VAC | 40W | 6000Lm | 180° | 1,75 | IP65 |
| MC-1200A-80 | 27M001377 | 240VAC | 80W | 12000Lm | 180° | 1,75 | IP65 |
| MC-1200DC-40-12/24 | 27M001385 | 12/24VDC | 40W | 6000Lm | 180° | 1,25 | IP65 |
