Max Lighting 2026 product catalogue

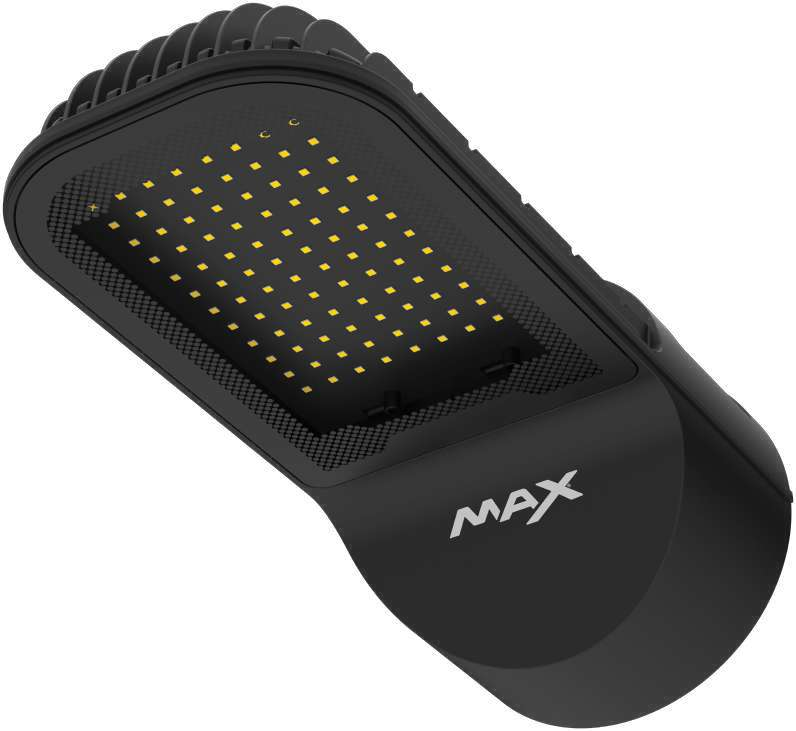

Matrix
Matrix is a street and park luminaire family engineered for reliable use across different climatic conditions. The catalogue specifies CRI 80 colour rendering.
Models6
Max. Power200 W
Max. Luminous Flux30,000 Lm
Dimensions350 × 160 × 160 mm; pole Ø40-60 mm
CATALOGUE FEATURES
Technical profile of the product family.
CRI 805-year warrantyAC-DirectSuperCooler
L = Lens
ALL VARIANTS
Matrix
Technical values for all products are available in the product catalogue.
| Model | Product No | Voltage | Power | Luminous Flux | CCT / Kelvin | PF | Beam Angle | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| MATRIX-150 | 23M001282 | 230VAC | 150W | 22500Lm | 2000~6500K | >0,95 | 120° | 2,50 |
| MATRIX-150L | 23M001283 | 230VAC | 150W | 22500Lm | 2000~6500K | >0,95 | Asymmetric | 2,50 |
| MATRIX-180 | 23M001284 | 230VAC | 180W | 27000Lm | 2000~6500K | >0,95 | 120° | 2,50 |
| MATRIX-180L | 23M001285 | 230VAC | 180W | 27000Lm | 2000~6500K | >0,95 | Asymmetric | 2,50 |
| MATRIX-200 | 23M001286 | 230VAC | 200W | 30000Lm | 2000~6500K | >0,95 | 120° | 2,50 |
| MATRIX-200L | 23M001287 | 230VAC | 200W | 30000Lm | 2000~6500K | >0,95 | Asymmetric | 2,50 |
Max Lighting Product Catalogue 2026
